CE ISO Non Toxicity Tin Steel Plate 0.5mm DR9 For Food / Beverages Packaging

Ask Lasest Price
Brand Name :	SYL
Model Number :	tinplate
Certification :	CE ISO
Price :	＄800-1000/Metric Ton
Payment Terms :	T/T, Western Union, L/C, D/A, D/P
Supply Ability :	2000 Ton/Tons per Month
Delivery Time :	7-15 work days

Add to Cart

Product Details
Company Profile

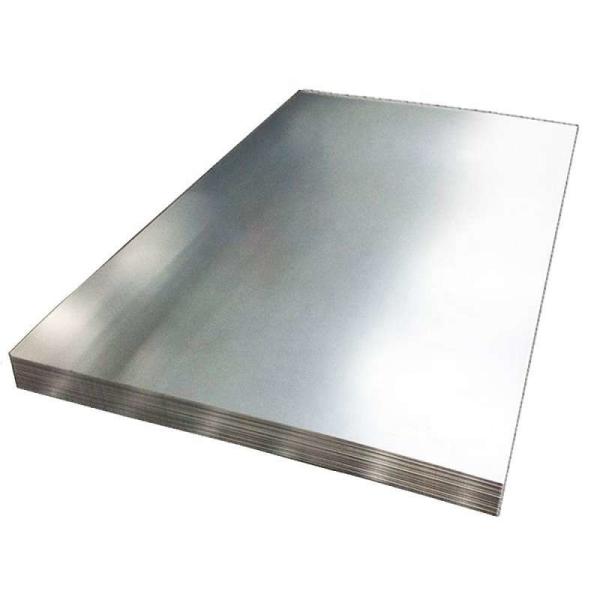

CE ISO Non Toxicity Tin Steel Plate 0.5mm DR9 For Food / Beverages Packaging

CE ISO Non-Toxicity Tin Steel Plate For Food / Beverages Packaging

Product Introduction

Tinplate has the strength and formability of steel combined with the noncorrosive and nontoxic properties of tin and has the additional property of easy solder ability. While it is largely used for containers for food and beverages, paints, oils, tobacco, and numerous other products, its use has broadened to include toys, baking equipment, and parts for radio and other electronic equipment.

Specifications

Tinplate
PRODUCT	Prime tinplate
STANDARD	BS EN 10202, DIN EN 10203, GB/T2520, JIS G3303
Grade	Prime
Annealing	BA CA
SIZE	thickness: 0.15-0.5mm
SIZE	width: 600-1050mm
TEMPER	T2-T4,DR7 DR8 DR9
COATING	1.1-8.4g/m2
FINISH	Stone, Bright, Silver
PACKING	Standard export packing, or according to customer's requirements.
MOQ	1 ton
DELIVERY	15-30 days after receipt of original L/C or pre-payment
PAYMENT	T/T or L/C

Tinplate & Tin Coated Steel Applications

A majority of tinplate products have been used by the container industry in the manufacturing of closures and cans but today, there has been more demand for tin coated steel in the appliance and automotive markets. Tinplate and tin coated steel have a wide array of uses including but not limited to:

Beverage cans

Food containers

Oil filter shells

Metal hoses

Paint trays

Electronic shields

Machinery parts

Features Of Tinplate

Excellent Corrosion Resistance: By selecting a proper coating weight, appropriate corrosion resistance is obtained against container contents.
Excellent Paintability & Printability: Printing is beautifully finished using various lacquers and inks.
Excellent Solderability & Weldability: tinplate is widely used for making various types of cans by soldering or welding.
Excellent Formability & Strength: By selecting a proper temper grade, appropriate formability is obtained for various applications as well as the required strength after forming.
Beautiful Appearance: tinplate is characterized by its beautiful metallic luster. Products with various kinds of surface roughness are produced by selecting the surface finish of the substrate steel sheet.

JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate.

It can be used in many parts,such as food can, oil cans and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Russia, Myanmar, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplates that meet international standards.

Coating Structure

Production Process

Mechanical Properties

Temper Grade	Hardness(HR30Tm)	Yield Strength(MPa)
T-1	49±3	330
T-2	53±3	350
T-3	57±3	370
T-4	61±3	415
T-5	65±3	450
T-6	70±3	530
DR-7M	71±5	520
DR-8	73±5	550
DR-8M	73±5	580
DR-9	76±5	620
DR-9M	77±5	660
DR-10	80±5	690

Coating Weight

Former Coating Designation	Nominal Coating Weight (g/m2)	Minimum average Coating Weight (g/m2)
10#	1.1/1.1	0.9/0.9
20#	2.2/2.2	1.8/1.8
25#	2.8/2.8	2.5/2.5
50#	5.6/5.6	5.2/5.2
75#	8.4/8.4	7.8/7.8
100#	11.2/11.2	10.1/10.1
25#/10#	2.8/1.1	2.5/0.9
50#/10#	5.6/1.1	5.2/0.9
75#/25#	5.6/2.8	5.2/2.5
75#/50#	8.4/2.8	7.8/2.5
75#/50#	8.4/5.6	7.8/5.2
100#/25#	11.2/2.8	10.1/2.5
100#/50#	11.2/5.6	10.1/5.2
100#/75#	11.2/8.4	10.1/7.8
125#/50#	15.1/5.6	13.9/5.2

Applications ans Cases

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.

FAQ:

Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly to Egypt, Russia, Myanmar, Thailand etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
