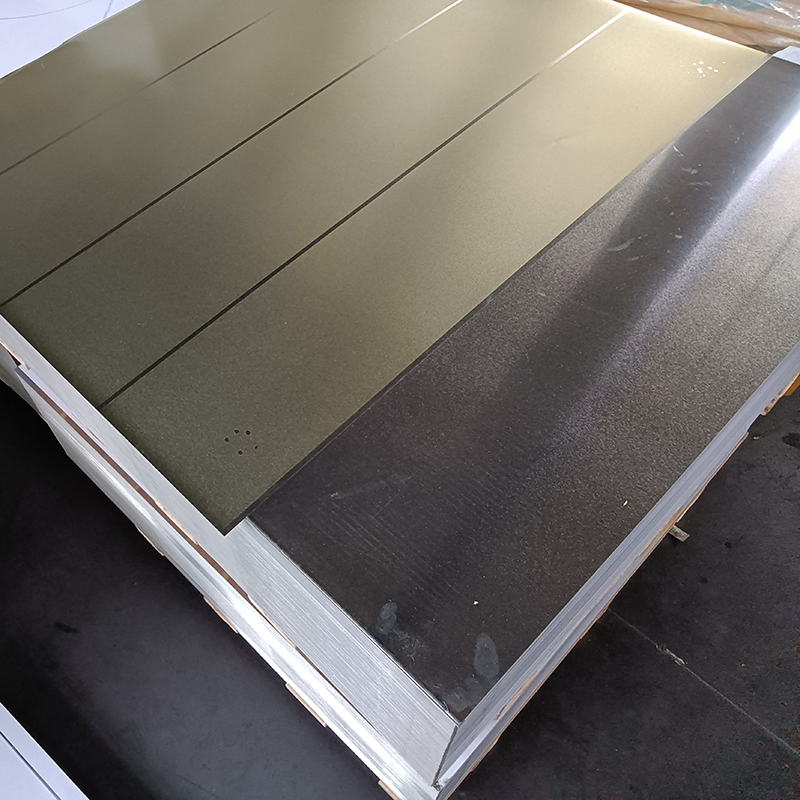

    Colour Prime Electrolytic Tinplate Good Weldability DIN EN 10203 600mm

    Ask Lasest Price
    Brand Name : SYL
    Model Number : tinplate
    Certification : CE ISO
    Price : $800-1000/Metric Ton
    Payment Terms : T/T, Western Union, L/C, D/A, D/P
    Supply Ability : 2000 Ton/Tons per Month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    Colour Prime Electrolytic Tinplate Good Weldability DIN EN 10203 600mm

    Tin Colour Prime Electrolytic Tinplate Good Weldability


    Product Introduction


    Tinplate, a tin coated steel, is the most sustainable and versatile packaging substrate which finds usage across a wide-end uses viz; food (edible oil, processed fruits & vegetables), non-food (paints & chemicals, aerosol sprays, battery) and beverages.


    Features


    * Beautiful surface luster

    Has a characteristic, beautiful metallic luster.

    * Good weldability

    Easy to weld and solder.

    * Excellent corrosion resistance

    Has excellent corrosion resistance and is widely used for food cans.


    Specifications


    Tinplate
    PRODUCTPrime tinplate
    STANDARDBS EN 10202, DIN EN 10203, GB/T2520, JIS G3303
    GradePrime
    AnnealingBA CA
    SIZEthickness: 0.15-0.5mm
    width: 600-1050mm
    TEMPERT2-T4,DR7 DR8 DR9
    COATING1.1-8.4g/m2
    FINISHStone, Bright, Silver
    PACKINGStandard export packing, or according to customer's requirements.
    MOQ1 ton
    DELIVERY15-30 days after receipt of original L/C or pre-payment
    PAYMENTT/T or L/C

    JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate.


    It can be used in many parts,such as food can, oil cans and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Russia, Myanmar, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplates that meet international standards.



    Coating Structure

    Production Process


    Mechanical Properties

    Temper Grade

    Hardness(HR30Tm)

    Yield Strength(MPa)

    T-1

    49±3

    330

    T-2

    53±3

    350

    T-3

    57±3

    370

    T-4

    61±3

    415

    T-5

    65±3

    450

    T-6

    70±3

    530

    DR-7M

    71±5

    520

    DR-8

    73±5

    550

    DR-8M

    73±5

    580

    DR-9

    76±5

    620

    DR-9M

    77±5

    660

    DR-10

    80±5

    690


    Coating Weight

    Former Coating Designation

    Nominal Coating Weight
    (g/m2)

    Minimum average Coating Weight (g/m2)

    10#

    1.1/1.1

    0.9/0.9

    20#

    2.2/2.2

    1.8/1.8

    25#

    2.8/2.8

    2.5/2.5

    50#

    5.6/5.6

    5.2/5.2

    75#

    8.4/8.4

    7.8/7.8

    100#

    11.2/11.2

    10.1/10.1

    25#/10#

    2.8/1.1

    2.5/0.9

    50#/10#

    5.6/1.1

    5.2/0.9

    75#/25#

    5.6/2.8

    5.2/2.5

    75#/50#

    8.4/2.8

    7.8/2.5

    75#/50#

    8.4/5.6

    7.8/5.2

    100#/25#

    11.2/2.8

    10.1/2.5

    100#/50#

    11.2/5.6

    10.1/5.2

    100#/75#

    11.2/8.4

    10.1/7.8

    125#/50#

    15.1/5.6

    13.9/5.2


    Applications ans Cases

    Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.


    FAQ:


    Q1. What are your company's main products ?

    A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

    Q2. How do you control quality ?

    A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

    Q3. What are the advantages of your company ?

    A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other steel companies.

    Q4. How many coutries you already exported ?

    A4: Exported to more than 50 countries mainly to Egypt, Russia, Myanmar, Thailand etc.

    Q5. Can you provide sample ?

    A5: We can provide the samll samples in stock for free, as long as you contact us.

    Customized samples will take about 5-7days.
