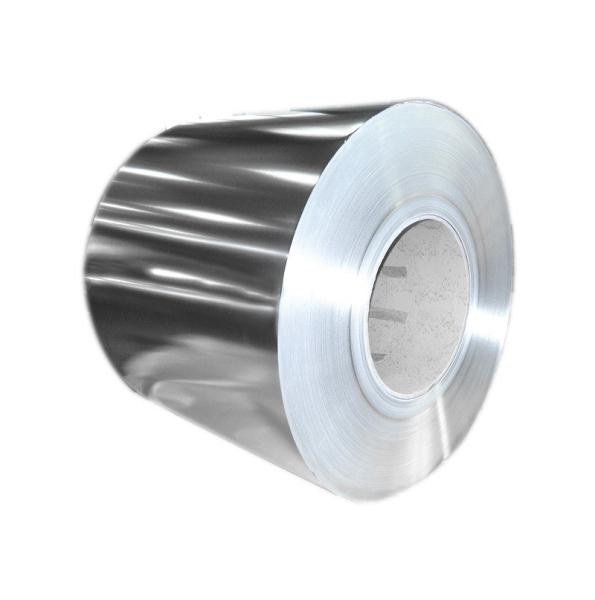

Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm

Ask Lasest Price
Brand Name :	SYL
Model Number :	tinplate
Certification :	CE ISO
Price :	＄800-1000/Metric Ton
Payment Terms :	T/T, Western Union, L/C, D/A, D/P
Supply Ability :	2000 Ton/Tons per Month
Delivery Time :	7-15 work days

Add to Cart

Product Details
Company Profile

Food Grade Tin Plate Steel Sheet Electrolytic Tinplate Coil DR9 1050mm

Food Grade Tin Plate Tin Steel Sheet Electrolytic Tinplate Sheet

What is Tinplate?

Tinplate (SPTE), is tin plated on both sides of the iron sheet, that is, cold rolled low carbon thin steel plate, rust resistance, corrosion resistance, non-toxic. Mainly used for making metal packaging, including canned food, beverage, chemical, medicine, sanitation, coatings, paints, sprays, cosmetic caps and so on.

The main advantages of tinplate are:

Soft, easy to bend, stretch, punch.
It is lighter in weight than glass jars and not easily broken.
Easy to carry, transport and keep.
It has good thermal conductivity, short sterilization time, and is not easy to break when the temperature changes sharply.

Specifications

Tinplate
PRODUCT	Prime tinplate
STANDARD	BS EN 10202, DIN EN 10203, GB/T2520, JIS G3303
Grade	Prime
Annealing	BA CA
SIZE	thickness: 0.15-0.5mm
SIZE	width: 600-1050mm
TEMPER	T2-T4,DR7 DR8 DR9
COATING	1.1-8.4g/m2
FINISH	Stone, Bright, Silver
PACKING	Standard export packing, or according to customer's requirements.
MOQ	1 ton
DELIVERY	15-30 days after receipt of original L/C or pre-payment
PAYMENT	T/T or L/C

JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate.

It can be used in many parts,such as food can, oil cans and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Russia, Myanmar, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplates that meet international standards.

Coating Structure

Production Process

Mechanical Properties

Temper Grade	Hardness(HR30Tm)	Yield Strength(MPa)
T-1	49±3	330
T-2	53±3	350
T-3	57±3	370
T-4	61±3	415
T-5	65±3	450
T-6	70±3	530
DR-7M	71±5	520
DR-8	73±5	550
DR-8M	73±5	580
DR-9	76±5	620
DR-9M	77±5	660
DR-10	80±5	690

Coating Weight

Former Coating Designation	Nominal Coating Weight (g/m2)	Minimum average Coating Weight (g/m2)
10#	1.1/1.1	0.9/0.9
20#	2.2/2.2	1.8/1.8
25#	2.8/2.8	2.5/2.5
50#	5.6/5.6	5.2/5.2
75#	8.4/8.4	7.8/7.8
100#	11.2/11.2	10.1/10.1
25#/10#	2.8/1.1	2.5/0.9
50#/10#	5.6/1.1	5.2/0.9
75#/25#	5.6/2.8	5.2/2.5
75#/50#	8.4/2.8	7.8/2.5
75#/50#	8.4/5.6	7.8/5.2
100#/25#	11.2/2.8	10.1/2.5
100#/50#	11.2/5.6	10.1/5.2
100#/75#	11.2/8.4	10.1/7.8
125#/50#	15.1/5.6	13.9/5.2

Applications ans Cases

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.

FAQ:

Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly to Egypt, Russia, Myanmar, Thailand etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
