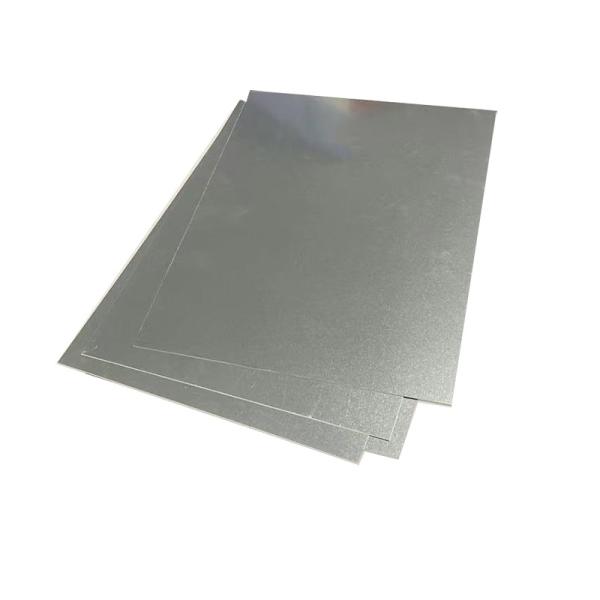

Electrolytic TH550 Steel Tin Plate Bright 600mm For Food Can

Ask Lasest Price
Brand Name :	SYL
Model Number :	tinplate
Certification :	CE ISO
Price :	＄480-700/Metric Ton
Payment Terms :	T/T, Western Union, L/C, D/A, D/P
Supply Ability :	2000 Ton/Tons per Month
Delivery Time :	7-15 work days

Add to Cart

Product Details
Company Profile

Electrolytic TH550 Steel Tin Plate Bright 600mm For Food Can

Factory price electrolytic Tin plate prime for Food can snd Eoe

Product Introduction

Tinplate is made up of sheets of steel, coated with a thin layer of tin. Tin is mainly used to prevent corrosion and rust.

It combines the strength and formability of steel with the corrosion resistance, solderability and aesthetic appearance of tin in a material with corrosion resistance, non-toxicity, high strength and good ductility.The primary use of tinplate now is the manufacture of tin cans.

Different styles and exquisite printing, tinplate packaging container is popular with customers, and widely used in food packaging, pharmaceutical packaging, commodity packaging, instrument packaging, industrial packaging and so on.

Specifications

Product Name	Factory price electrolytic Tin plate prime for Food can snd Eoe
Standard	GB, JIS, DIN ,ASTM
Material	MR SPCC
Grade	Prime
Annealing	BA/CA
Thickness	0.16-0.6 mm
Width	600-1219mm
Temper	T1, T2, T3, T4, T5, DR7, DR8, DR9, TH550, TH580, TH620, TH660
Coating(g/m2)	1.1/1, 2.0/2.0, 2.8/2.8
Surface Finish	Stone, Bright, Silver
Packaging	Standard export packing. or according to customer's requirements.
Payment	T/T or L/C

JIANGSU SENYILU METAL MATERIAL CO., LTD supplies various specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate. At present, the tinplate produced by AIYIA has been exported to many countries around the world, such as Italy, Russia, Tunisia, Thailand, Brazil and other countries. It is widely used in food packaging and chemical product packaging. We provide high-quality tinplate that meets international standards.

Coating Structure

Production Process

Mechanical Properties

emper Grade	Hardness(HR30Tm)	Yield Strength(MPa)
T-1	49±3	330
T-2	53±3	350
T-3	57±3	370
T-4	61±3	415
T-5	65±3	450
T-6	70±3	530
DR-7M	71±5	520
DR-8	73±5	550
DR-8M	73±5	580
DR-9	76±5	620
DR-9M	77±5	660
DR-10	80±5	690

Coating Weight

Former Coating Designation	Nominal Coating Weight (g/m2)	Minimum average Coating Weight (g/m2)
10#	1.1/1.1	0.9/0.9
20#	2.2/2.2	1.8/1.8
25#	2.8/2.8	2.5/2.5
50#	5.6/5.6	5.2/5.2
75#	8.4/8.4	7.8/7.8
100#	11.2/11.2	10.1/10.1
25#/10#	2.8/1.1	2.5/0.9
50#/10#	5.6/1.1	5.2/0.9
75#/25#	5.6/2.8	5.2/2.5
75#/50#	8.4/2.8	7.8/2.5
75#/50#	8.4/5.6	7.8/5.2
100#/25#	11.2/2.8	10.1/2.5
100#/50#	11.2/5.6	10.1/5.2
100#/75#	11.2/8.4	10.1/7.8
125#/50#	15.1/5.6	13.9/5.2

Applications

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.

FAQ:

Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
