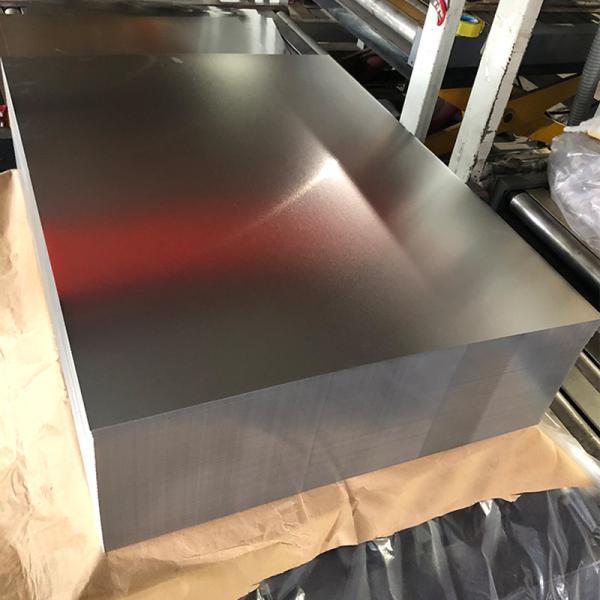

Lacquered Sheets Steel Tin Plate 0.16mm Used For Paint Cans

Ask Lasest Price
Brand Name :	SYL
Model Number :	tinplate
Certification :	CE ISO
Price :	＄480-700/Metric Ton
Payment Terms :	T/T, Western Union, L/C, D/A, D/P
Supply Ability :	2000 Ton/Tons per Month
Delivery Time :	7-15 work days

Add to Cart

Product Details
Company Profile

Lacquered Sheets Steel Tin Plate 0.16mm Used For Paint Cans

High Quality tin plate lacquered sheets used for paint cans

Product Introduction

  Due to its good sealing, preservation, light-proof, firmness and
unique tinplate, iron-mouth packaging determines that the
general-purpose container has a wide range of surface
characteristics of metal packaging, and is an international
iron-mouth packaging.     With the continuous development of
various tinplate materials, DR materials, and chrome-plated iron,
packaging products and technologies have been realized, and
tinplate packaging has comprehensively promoted innovation.
Packaging materials, product packaging, product characteristics,
special purposes, wheat packaging containers, a wide range of
customer favorites, packaging food packaging industry packaging
daily necessities, packaging food packaging daily necessities, etc.

Specifications

Product Name	High Quality tin plate lacquered sheets used for paint cans
Standard	GB, JIS, DIN ,ASTM
Material	SPCC
Grade	Prime
Annealing	BA/ CA
Thickness	0.14-0.7 mm
Width	600-990mm
Temper	T1, T2, T3, T4, T5, DR7, DR8, DR9
Coating(g/m2)	1.1/1, 2.0/2.0, 2.8/2.8
Surface Finish	Stone, Bright, Silver
Packaging	Standard export packing. or according to customer's requirements.
Payment	T/T or L/C

JIANGSU SENYILU METAL MATERIAL CO., LTD supplies various specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate. At present, the tinplate has been exported to many countries around the world, such as Italy, Russia, Tunisia, Thailand, Brazil and other countries. It is widely used in food packaging and chemical product packaging. We provide high-quality tinplate that meets international standards.

Coating Structure

Production Process

Mechanical Properties

emper Grade	Hardness(HR30Tm)	Yield Strength(MPa)
T-1	49±3	330
T-2	53±3	350
T-3	57±3	370
T-4	61±3	415
T-5	65±3	450
T-6	70±3	530
DR-7M	71±5	520
DR-8	73±5	550
DR-8M	73±5	580
DR-9	76±5	620
DR-9M	77±5	660
DR-10	80±5	690

Coating Weight

Former Coating Designation	Nominal Coating Weight (g/m2)	Minimum average Coating Weight (g/m2)
10#	1.1/1.1	0.9/0.9
20#	2.2/2.2	1.8/1.8
25#	2.8/2.8	2.5/2.5
50#	5.6/5.6	5.2/5.2
75#	8.4/8.4	7.8/7.8
100#	11.2/11.2	10.1/10.1
25#/10#	2.8/1.1	2.5/0.9
50#/10#	5.6/1.1	5.2/0.9
75#/25#	5.6/2.8	5.2/2.5
75#/50#	8.4/2.8	7.8/2.5
75#/50#	8.4/5.6	7.8/5.2
100#/25#	11.2/2.8	10.1/2.5
100#/50#	11.2/5.6	10.1/5.2
100#/75#	11.2/8.4	10.1/7.8
125#/50#	15.1/5.6	13.9/5.2

Applications

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.

FAQ:

Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
