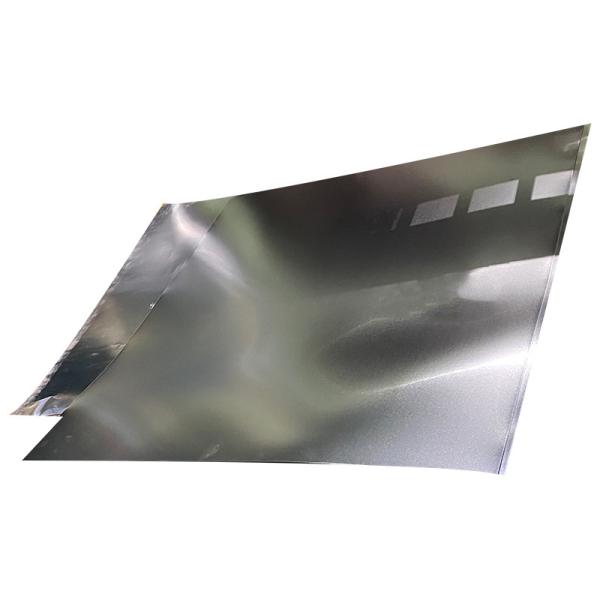

Electrolytic Steel Tinplate Sheet With Temper 1 - 5 Tin Coating 2.8g/M2

Ask Lasest Price
Brand Name :	SYL
Model Number :	tinplate
Certification :	CE ISO
Price :	＄800-1000/Metric Ton
Payment Terms :	T/T, Western Union, L/C, D/A, D/P
Supply Ability :	2000 Ton/Tons per Month
Delivery Time :	7-15 work days

Add to Cart

Product Details
Company Profile

Electrolytic Steel Tinplate Sheet With Temper 1 - 5 Tin Coating 2.8g/M2

Prime Electrolytic Tinplate Sheet With Temper1-5 Tin Coating 2.8g/M2

Product Introduction

Prime Electrolytic sheet of metal which thin steel sheet coated with a layer of tin that protects the steel from corrosion.formed into a thin plate. tin - a vessel (box, can, pan, etc.) made of tinplate and used mainly in baking.

As long as the tin coating in the interior of the can is intact, the tinplate will keep acid foods from reaching the steel frame of the can so it does not rust.

Specifications

Product Name	Prime Electrolytic Tinplate Sheet With Temper1-5 Tin Coating 2.8g/M2
Standard	JIS
Material	MR
Grade	Prime
Annealing	BA/ CA
Thickness	0.16-1.0mm
Width	As customer required and ordered
Temper	T1, T2, T3, T4, T5, DR-7m, DR-8, DR-8m
Coating(g/m2)	1.1/1.1 2.0/2.0 2.8/2.8
Surface Finish	Stone finish
Packaging	Standard export packing or according to customer's requirements.
Payment	T/T or L/C

JIANGSU SENYILU METAL MATERIAL CO., LTD supplies different specifications of Double reduced (DR) tinplate and Single reduced (SR) tinplate.

It can be used in many parts,such as food can, oil can and caps. At present, tinplates have been exported to many countries around the world, such as Egypt, Russia, Myanmar, Thailand and other countries. It is widely used in food packaging and chemical product packagings. We can provide high-quality tinplates that meet international standards.

Coating Structure

Production Process

Mechanical Properties

Temper Grade	Hardness(HR30Tm)	Yield Strength(MPa)
T-1	49±3	330
T-2	53±3	350
T-3	57±3	370
T-4	61±3	415
T-5	65±3	450
T-6	70±3	530
DR-7M	71±5	520
DR-8	73±5	550
DR-8M	73±5	580
DR-9	76±5	620
DR-9M	77±5	660
DR-10	80±5	690

Coating Weight

Former Coating Designation	Nominal Coating Weight (g/m2)	Minimum average Coating Weight (g/m2)
10#	1.1/1.1	0.9/0.9
20#	2.2/2.2	1.8/1.8
25#	2.8/2.8	2.5/2.5
50#	5.6/5.6	5.2/5.2
75#	8.4/8.4	7.8/7.8
100#	11.2/11.2	10.1/10.1
25#/10#	2.8/1.1	2.5/0.9
50#/10#	5.6/1.1	5.2/0.9
75#/25#	5.6/2.8	5.2/2.5
75#/50#	8.4/2.8	7.8/2.5
75#/50#	8.4/5.6	7.8/5.2
100#/25#	11.2/2.8	10.1/2.5
100#/50#	11.2/5.6	10.1/5.2
100#/75#	11.2/8.4	10.1/7.8
125#/50#	15.1/5.6	13.9/5.2

Applications

Tinplate is primarily used for packaging foodstuffs and beverages, but it is also used in containers for oils, grease, paints, polishes, chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.

FAQ:

Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS.

Q3. What are the advantages of your company ?

A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q4. How many coutries you already exported ?

A4: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q5. Can you provide sample ?

A5: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
